NaviGatr: Wearable AI Navigation Assistant for the Visually Impaired

Introduction

NaviGatr is a project that aims to aid the visually impaired using various computer vision algorithms. While prior systems have used object detection or depth sensing independently, a combined real-time approach has not been widely implemented.

Our system uses three different machine learning models to extract spatial and contextual data from camera frames captured at eye level via a wearable headset. These models perform:

• Object detection
• Monocular depth estimation
• Emotion recognition

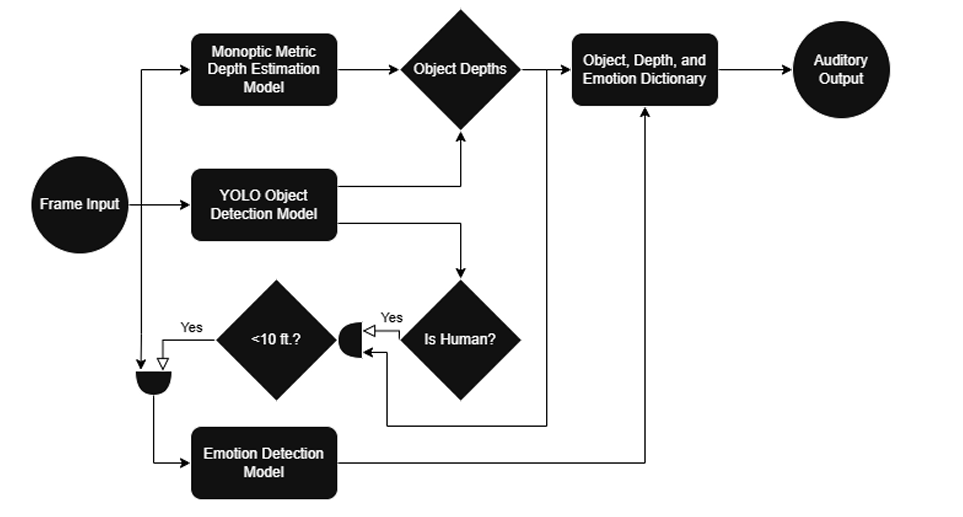

The output of these models is aggregated, interpreted, and passed to an output module — currently implemented as a voice assistant — which guides the user with auditory cues about their surroundings.

---

🔦 Computer Vision Models

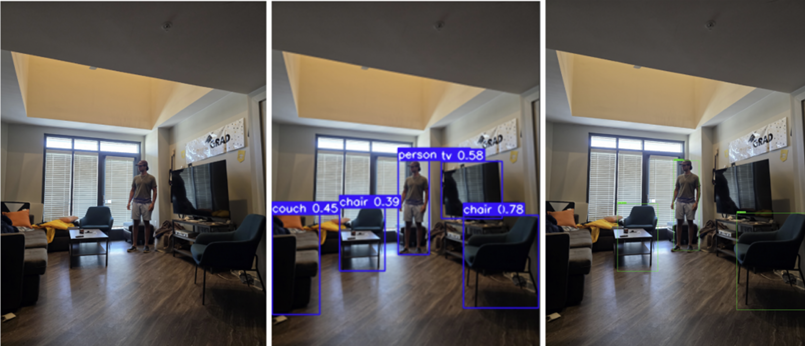

🔍 Object Detection

We use different object detection models based on platform constraints:

• On Windows and higher-powered PCs, we run YOLOv11n (from Ultralytics), which offers fast and accurate detection across 80 COCO classes.
• On the Raspberry Pi 5 with Coral TPU, we use SSD MobileNet V2, a lightweight model optimized for edge inference.

Both models return bounding boxes and class labels which are combined with depth data to localize and describe objects to the user in real-world terms.

😐 Emotion Detection

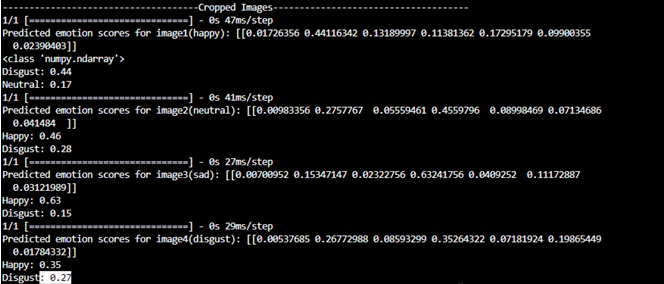

We trained a custom model based on the FER2013 dataset, using the EfficientNetB0 architecture. This model runs on the Coral TPU and:

• Accepts cropped 256x256 RGB facial images
• Classifies emotions such as happy, sad, angry, disgust, etc.
• Triggers only when a person is nearby (~10 feet)

This allows NaviGatr to add social context to the user’s environment.

📏 Depth Sensing

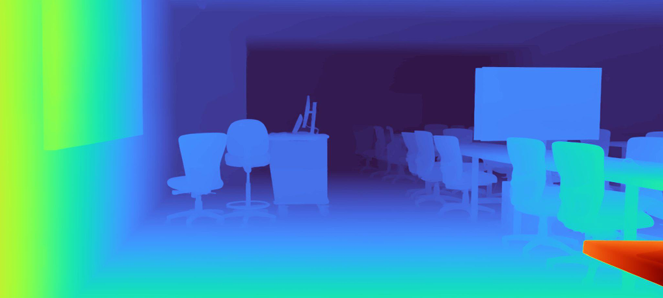

We use Apple’s Depth Pro model — a monocular depth estimation model that returns absolute metric depth, unlike most models that return relative depth.

• Deployed on a GPU cloud instance (AWS EC2)
• Receives images from the Pi over HTTPS
• Returns a dense depth map and focal length for use in positioning

Depth Pro uses a transformer-based architecture and produces sharp gradients and accurate boundaries. The results are used to locate how far away each object is in meters.

🔊 Output Handling

This is how we handled output delivery in NaviGatr:

The object detection model returns an array of bounding boxes, each containing (x, y) coordinates relative to the camera image. Meanwhile, the depth estimation model outputs a dense depth map containing the estimated distance (in meters) for each pixel.

🧮 Determining Object Depth:

• For each object’s bounding box, we isolate the corresponding sub-array in the depth map.
• We select the minimum value within this sub-array to approximate the object’s nearest point.
• This gives us a real-world distance to each object.

🕒 Spatial Orientation:

• We divide the image horizontally into four quadrants to mimic a clock-based directional guide.
• Depending on the x-coordinate of the bounding box center, we label objects using clock directions like:
  • 10 o’clock, 11 o’clock, 12 o’clock, 1 o’clock, 2 o’clock
• This makes the system more intuitive for the user.

Example: If a chair is detected with its bounding box centered near the left-middle of the image and its depth is 2 meters, the audio output will be:

"Chair, 11 o'clock, 2 meters away"

🙂 Emotion Awareness:

• If the detected object is a person, their cropped bounding box is passed to the emotion detection model.
• The model returns the emotional state, which is appended to the output.

Example: If a sad person is detected at the right side:

"Person, 1 o'clock, sad"

The output is then synthesized into speech and delivered via audio for real-time navigation assistance.

---

---

🛠️ Hardware Overview

Raspberry Pi 5

• 8GB RAM
• Quad-core Cortex-A76 CPU (64-bit)
• Runs Ubuntu 24.04 LTS (Lite) for edge performance and compatibility

Pi Camera

• Mounted front-facing at eye level
• Captures real-time frames at 30 FPS
• Connected via a long ribbon cable

Coral TPU

• USB accelerator for running TFLite quantized models
• Enables real-time inference for object and emotion detection

GPIO Display

• 3.5" touchscreen for demonstration and debugging
• Displays bounding boxes, logs, and FPS rates

Power Bank

• 10,000 mAh Anker bank with USB-C output
• Powers the Pi, TPU, fans, and display

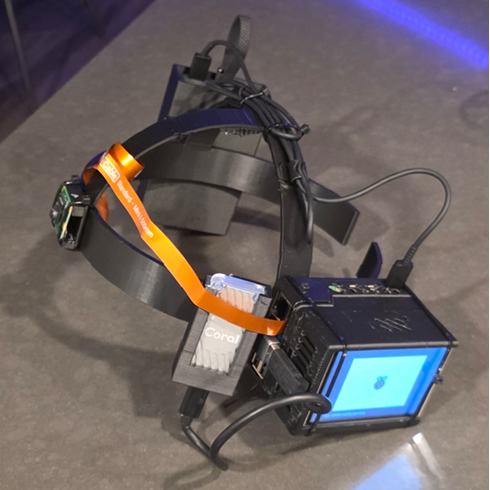

3D Printed Headband

• Custom CAD design with:
  • TPU holder
  • Battery holster
  • Pi + Fan housing
  • Balanced, ergonomic fit
• Printed using PLA with rounded edges for safety
• Fans positioned for thermal regulation

---

🔗 Further Docs & Resources

📂 Raspberry Pi 5 Setup & Firmware

Full walkthrough for flashing Ubuntu, installing dependencies, setting up camera access, and running the core script.

⚡ Wiring & Power Guide

Wiring diagrams for GPIO display, fans, Coral TPU, and safe USB-C routing.

📽️ 3D Design & Hardware Assembly

STL files, CAD renderings, and assembly instructions for the NaviGatr headset.

📄 Final Report (PDF)

Complete engineering report including benchmarking, design decisions, and testing plans.

📚 GitHub Repository

Codebase for the models, hardware integration, and deployment scripts.

🎥 Demonstration Video

(Coming soon) Live test run of NaviGatr navigating a test environment.

---

👥 Team Members

• Naitik Gupta — Emotion detection, Pi integration, hardware design, overall integration
• Micah Wright — Object detection, documentation, camera logic
• Eliav Hamburger — Depth estimation, cloud backend, testing and validation

---

NaviGatr pushes the boundary of accessible computing, demonstrating how on-device machine learning and thoughtful hardware design can empower a community often overlooked by mainstream tech.
